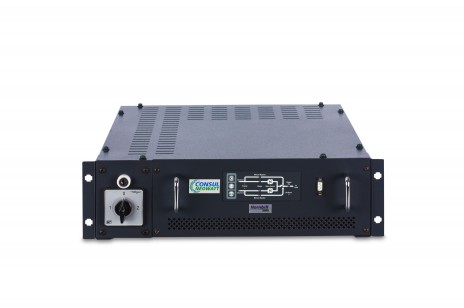

HORNBILL 1000 & 2000

Hornbill Static switch have different user selectable parameters with DSP control. It is excellent performance enhancement system useful for Data center, Process Automation, Power plant, Healthcare, Telecom, Broadcasting, Industry type of environment.



    • 32 bit DSP controllers
    • Automatic instantaneous transfer and retransfer without cross connection of sources
    • Interlocking of hardware & software to avoid make - before switching
    • Enhanced monitoring and diagnostics
    • RS 232 or RS 485 interface with MODBUS protocol
    • Redundant power supply
    • 19" Rack mountable
    • Complies with IEEE 446
    • Natural air cooled for highest reliability
  •
    MODEL Hornbill 1000 Hornbill 2000
    Input / Output
    Nominal Voltage 110 / 115/230 / 240 VAC (1 Ph + N)
    Voltage Tolerances +/- 15%
    Frequency Tolerances wide band 40 - 70 Hz Auto Selectable
    Power Capacity 16A / 32A / 63A
    No. of Switching Poles SINGLE TWO
    Overload Capacity 110% for 1 hour, 150% for 60 s, 200% for 10 s, 1000% for 100 ms
    Duty Continuous
    Load Power Factor range 0.2 to unity leading or lagging
    Source Voltage Distortion > 10% THD
    Controller 32 bit DSP
    Switch
    Transfer < 5 ms in sync & No sync
    Voltage regulation ± 2%
    Retransfer < 5 ms in sync & No sync
    Manual Bypass Provided
    Efficiency (Ref. IEC 60146-1-1)* ≥ 99% ≥ 98%
    Environmental
    Operating Temperature 0 to 40°C
    Storage Temperature 0 to 70°C
    Relative Humidity Up to 95% (Non Condensing)
    Acoustic Noise @1 m (Ref. ISO 3746) ≤ 45 dBA
    Altitude
    Physical
    Enclosure Protection IP – 20
    Cooling Natural
    Color RAL 7016
    Cable Entry Back
    Dimensions 3 U (485 x 450 x 132 mm)
    Installation 19” Rack Mountable
    User Interface
    Indications Source 1 Healthy, Source 1 Priority, Source 1 Feeding, Source 1 Manual bypass ON, Output ON
      Source 2 Healthy, Source 2 Priority, Source 2 Feeding, Source 2 Manual bypass ON, No Sync
    Fault Indication Overload
    Standards IEC 62310-1, IEEE 446
    Other Features RS 485 MODBUS, Ethernet connectivity (optional)
